C6 Host Assembly

$15.90 inc. tax

$14.99 ex. tax
? Tax based on Utah, United States.

Product Code: SL-C6LHA
Heat Sink Option*
Driver Pill Option*
Color & Logo Marking Option COPY*
Holster Option*

C6 Host Assembly Summary

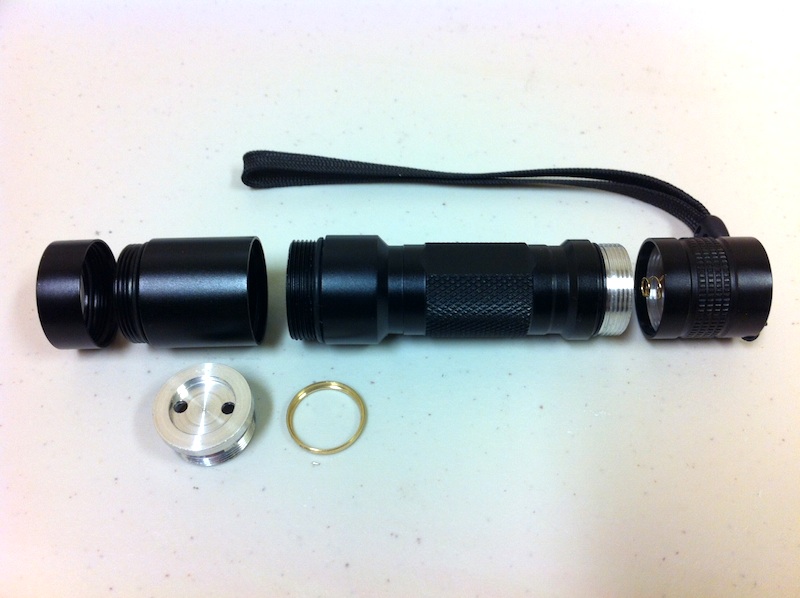

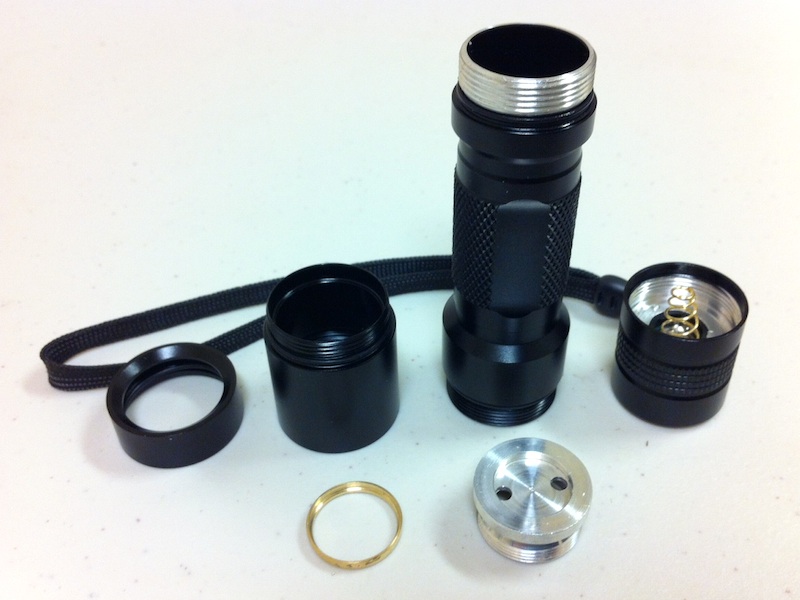

Our "classic" C6 host assembly includes the retaining ring, heat sink holder, battery holder and tailcap switch. Accepts 2 X RCR123A, 2 X CR123A or 1 X 18650 batteries depending on diode and driver used.

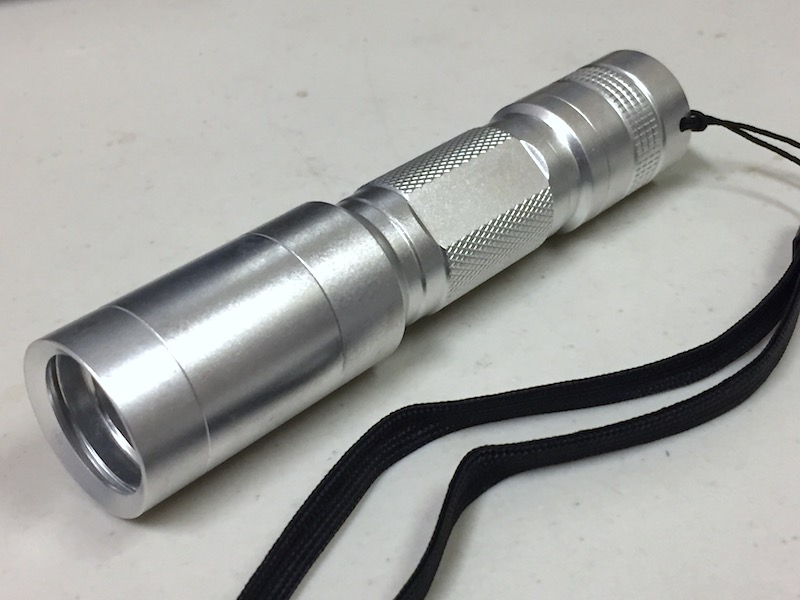

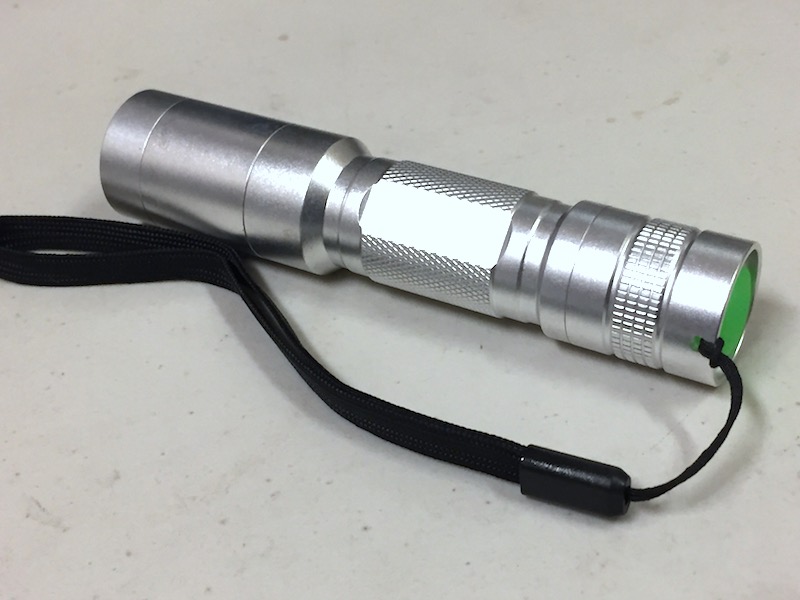

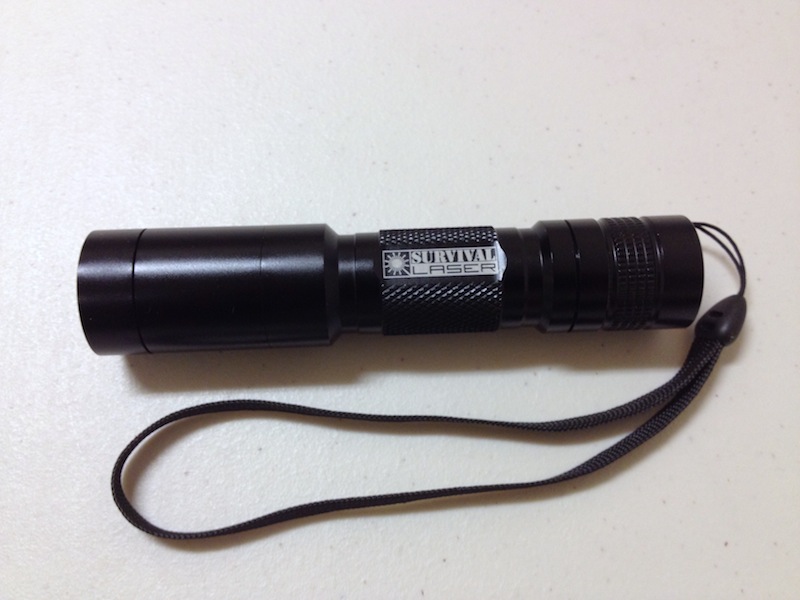

Includes your choice of aluminum or copper heat sink with set screw and a 0.050' Allen wrench (or no heat sink), choice of standard aluminum, drilled aluminum, drilled brass or heat sink driver pill, all including a brass ring to fit a 16.8mm diameter driver board, choice of black anodized finish with no marking, black anodized finish with the Survival Laser logo, or aluminum finish with no logo, and choice of holster or no holster.

Note:
 If you select the "driver heat sink" pill option, you should also select the "extended and tapered copper" heat sink option to allow enough room for the other components.

All heat sinks are designed to fit a standard 12mm diameter diode module.

The C6 host can be used as a high performance flashlight with our flashlight parts bundles and a single 18650 battery.

The C6 host is compatible with the battery extension tube, pressure pad switch, the Survival Laser holster and other parts and accessories.

Note: Does not come with LED diode, diode module, driver circuit, lens, focusing ring or other components.

Overall Length: 4.77' (w/standard heat sinks)
Maximum Diameter: 1.02'
Weights: 67 grams (with aluminum heat sink)
94 grams (with standard copper heat sink)
102 grams (with extended copper heat sink)
114 grams (with extended and tapered copper heat sink)
Updating Order Details
Please do not refresh or navigate away from the page!

Customer Reviews

4 review(s) posted (write review)

5 product stars
great host - ryan - Tuesday, September 9, 2014
Great host fit an finish were great threads were all smooth. Went together in less than 5 minutes. Would buy again

5 product stars
Fast shipping,studry,fantastic build quality, with one little flaw. - Jonathan - Sunday, July 27, 2014
The Housing arrived 1 day early of the arrival estimate,well packaged, but the one tiny flaw is in the anodizing, on mine anyway the battery cap had a 3 scratches down the grooves of the grip on it, it's definitely no big deal and doesn't bother me but I thought it was worth noting. Best laser housing hands down for first builds and hope to do business with survival laser again!

4 product stars
Nice Host - The Lightning Stalker - Thursday, June 12, 2014
This is a really nice host. Make sure to get the drilled pill if you have a driver that is soldered directly to the diode. You may also need to remove the back of the module as there is only about 10x19mm of space behind the diode. So keep this in mind when selecting a driver. The AixiZ driver that comes in a 2 pack does not fit.

5 product stars
Premium - Nick - Friday, May 9, 2014
I had a green laser module and no where to put it. This was the cheapest option. My only problem with it was that some threading was covered in black enamel, which I had to sand down ever so slightly and extremely carefully to make an electrical connection, only because I couldn't use the driver pill for this build. Also the heat sink is a little too long and makes the heat sink retaining ring miss contact with the host by about 1mm. Otherwise it's small, tough and really a sexy design. Very easy to put together. Arrived in 2 days after my order. This is the last dpss green laser I'll ever buy.
